Gavi® Automated Vitrification

Vitrification is the most up to date and effective method of freezing oocytes and embryos, regardless of stage1. Talk to embryologists about manual vitrification and they will readily agree that the process can be tedious and time-consuming. There is a long learning curve, skills need to be maintained and intense focus is required by the embryologist.

Gavi®, the world’s first automated vitrification instrument, was designed by embryologists who wanted better control over the variables involved in manual vitrification – temperature, embryo handling, cryoprotectant concentrations and balancing equilibration/vitrification timing. Their aim was stage specific, controlled vitrification performed in a standardised way every single time – and they were successful.

Ideal Vitrification Environment

Gavi® helps you achieve optimal vitrification conditions in a different way12. It vitrifies oocytes, cleavage and blastocyst stage embryos with an automated, standardised, controlled protocol allowing vitrification to happen the same way every time12.

Oocytes/embryos are held in the Gavi® pod, key to the systems success the specially designed device also acts as the container for the oocytes/embryos in LN2 storage. Gavi® can vitrify 8 oocytes and cleavage stage embryos simultaneously (2 per pod) and 4 blastocysts simultaneously (1 per pod) allowing the embryologist to take control of other duties while vitrification is being performed. Gavi® helps you with:

  • Automated solution dispensing: A robotic liquid-handling unit dispenses the necessary solutions with a precision difficult to achieve by hand, and eliminating the need to manually move embryos between fluids3.
  • Gavi® Pod design: Designed to secure embryos in place during fluid exchange and liquid nitrogen (LN2) storage3, and to allow for fast cooling and warming rates.
  • Control of exposure: The exposure timing to cryoprotectant solutions is carefully controlled to avoid toxic over-exposure3.
  • Temperature control: sensors indicate that Gavi® is outside the recommended normal operational temperature range and if the heating module in Gavi® is outside of its acceptable temperature range12.
  • Reduces the risk of cross-contamination: After equilibration, the Pod is automatically heat-sealed so it can be placed directly into LN212.

Gavi® Clinical Outcomes: The proof is in the results

At Genea, our manual vitrification outcomes were proven, data published in 2014 showed our single embryo transfer of vitrified-warmed blastocysts had equivalent live-birth rates and improved neonatal outcomes compared with fresh transfers2.  Gavi® needed to be as good as our current system – and it was.

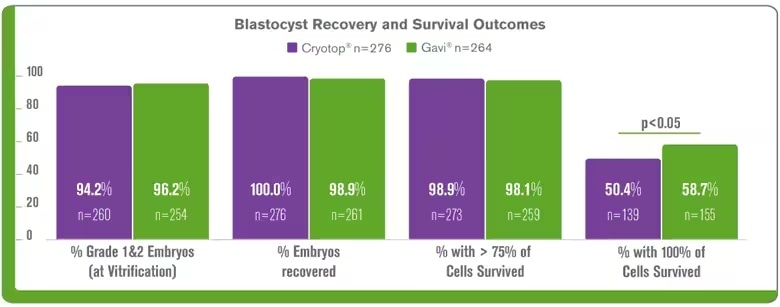

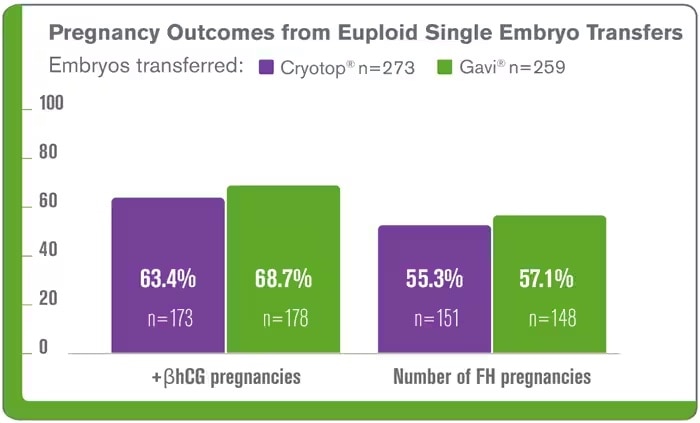

The following clinical data was obtained from the Genea clinic Gavi® implementation, it demonstrates that Gavi® delivers comparable clinical outcomes of blastocysts vitrified using the Gavi® system compared to Cyrotop system including, embryo survival and clinical pregnancy3,9 The results continue for Gavi®, it has been highlighted at conferences since its launch at ESHRE London 2013. ASPIRE5 (Brisbane, 2014), ALPHA6 (Antalya, 2014) and data from using Gavi® clinically for oocyte vitrification was presented at ASRM 2017 (O-136)7.

Easy to use regardless of experience

Any implementation period gives an opportunity to analyse data and so we looked back. It became obvious how easy Gavi® was to learn and how quickly embryologists were able to achieve benchmark results compared to the manual method8.

When analysing the early stage implementation data for the two techniques in Genea clinics we found using Gavi® there was a reduction in the variability of results between embryologists and the period between basic vitrification competency to aspirational competency was reduced8.

What about storage?

Any new approach needs to be adaptable, Gavi® pods are securely stored on cassettes in specially designed single or double level liquid nitrogen Gavi® Storage Dividers12. The dividers come in square or round configurations to fit easily into your existing storage vessels.
